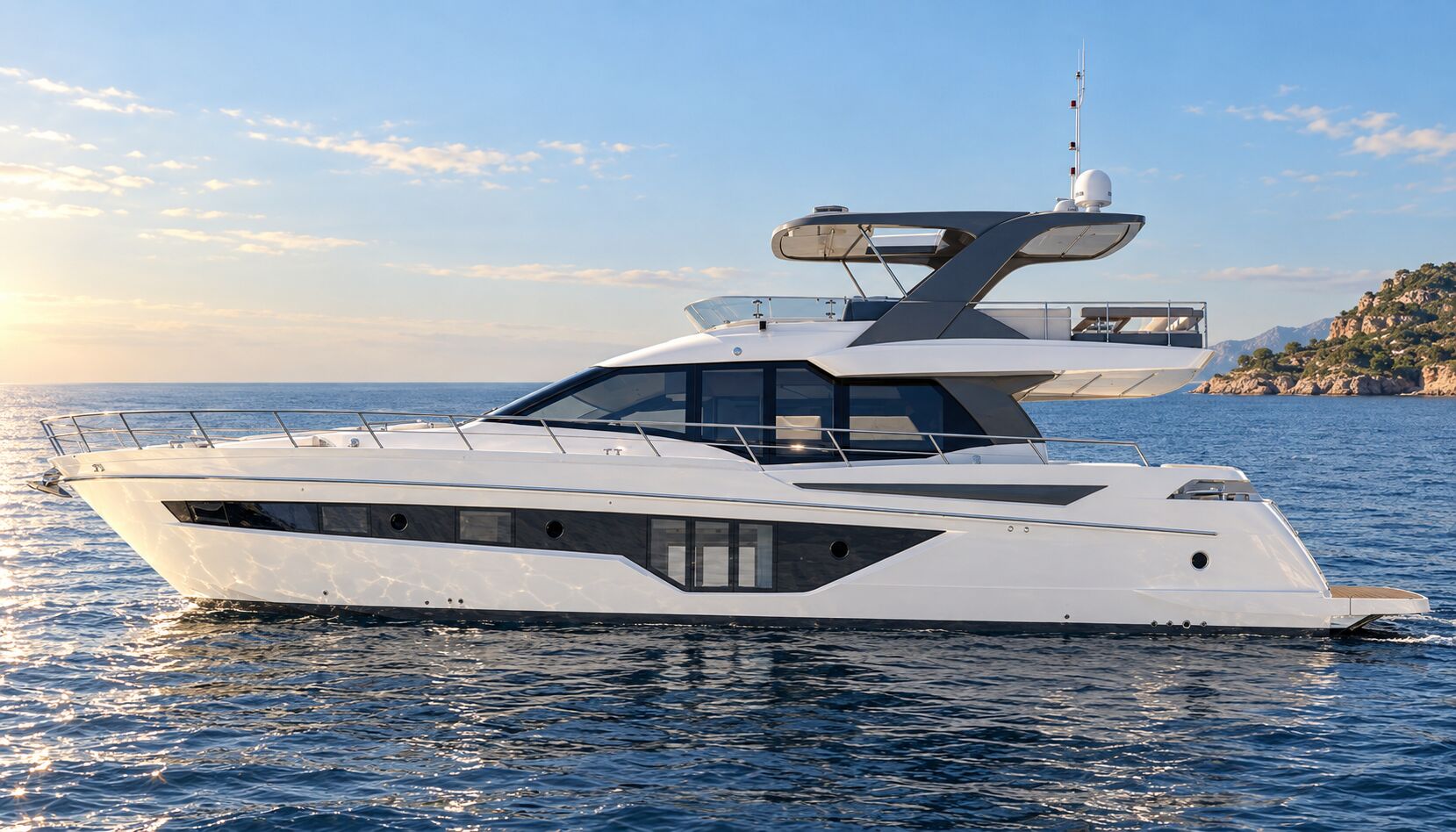

Flybridge Motor Yacht
BALTRA B65
A flybridge yacht built for long days on the water and effortless evenings at anchor.
19.60 m
Length overall
5.00 m
Beam
CE / ABYC
Certification
2 × CAT C7.1
Engines
Deck Plans

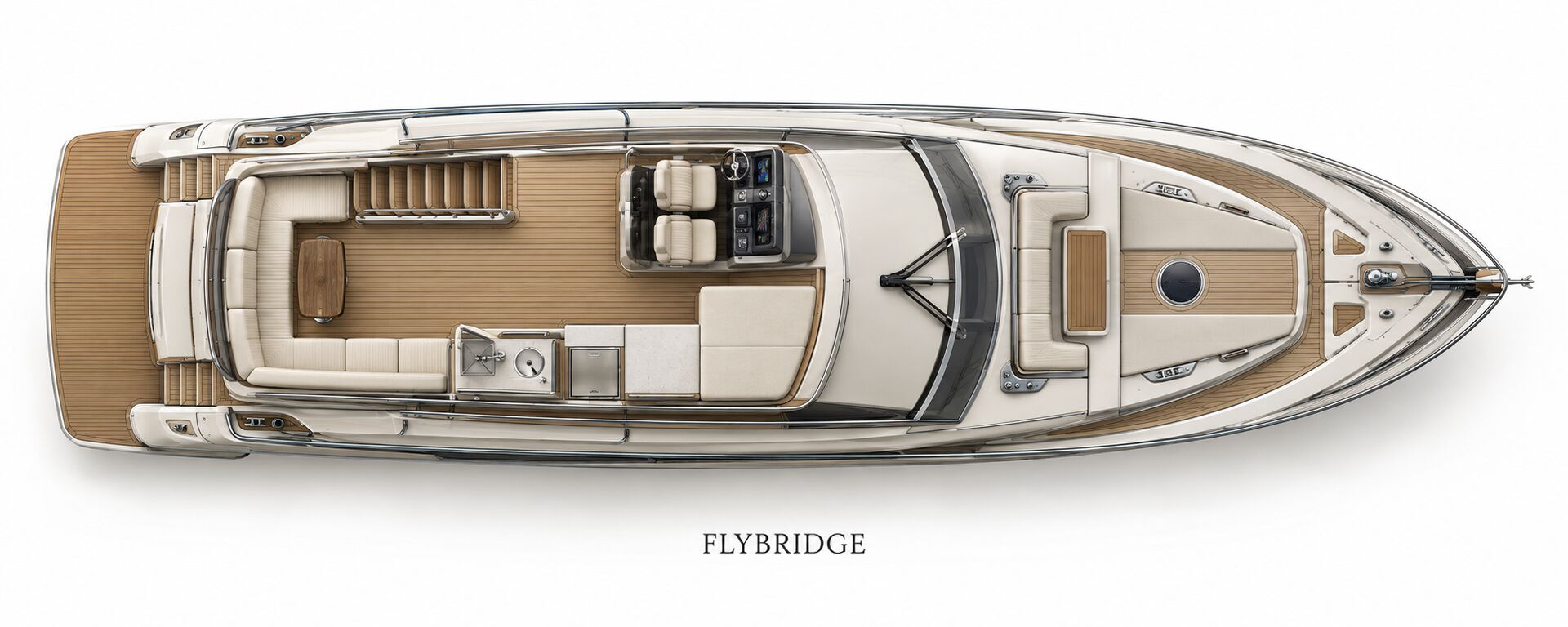

Flybridge

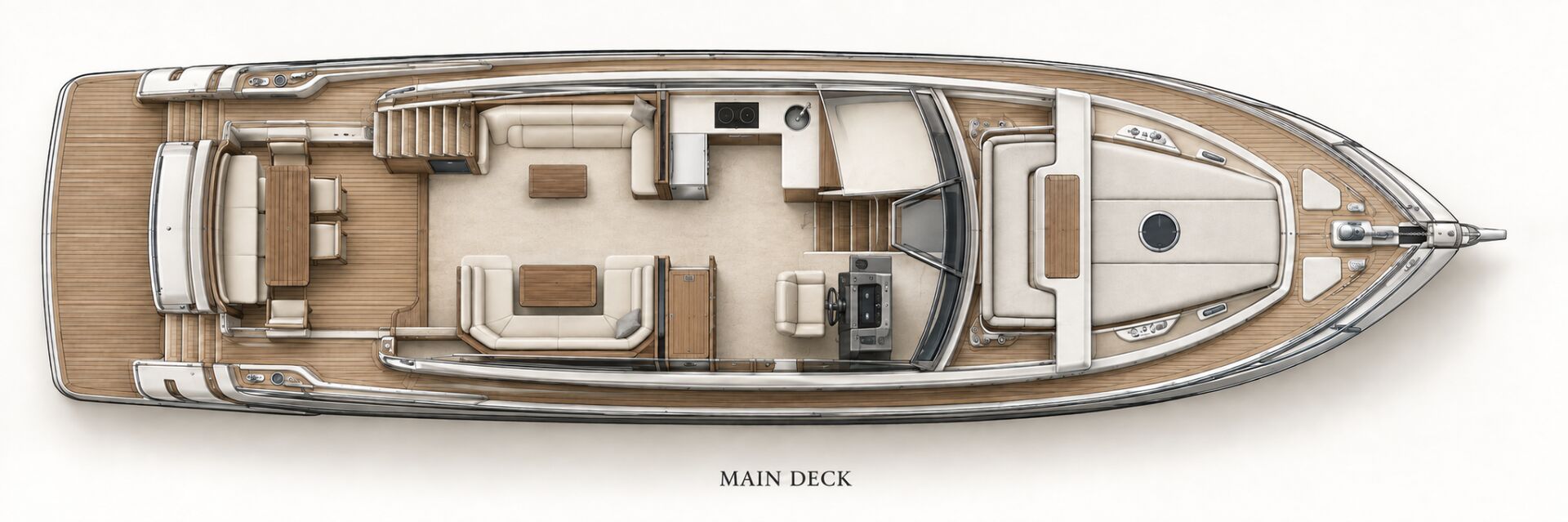

Main deck

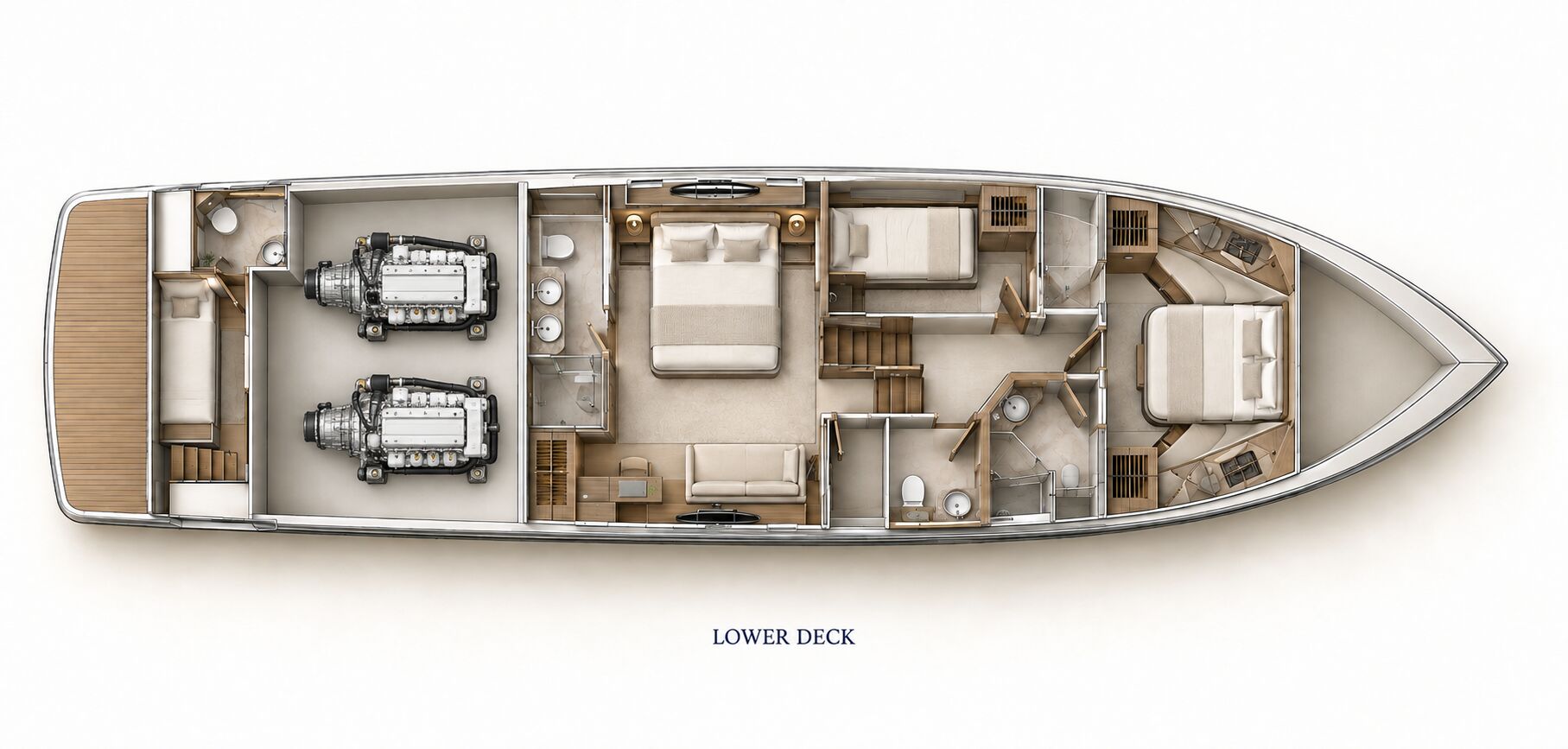

Lower deck

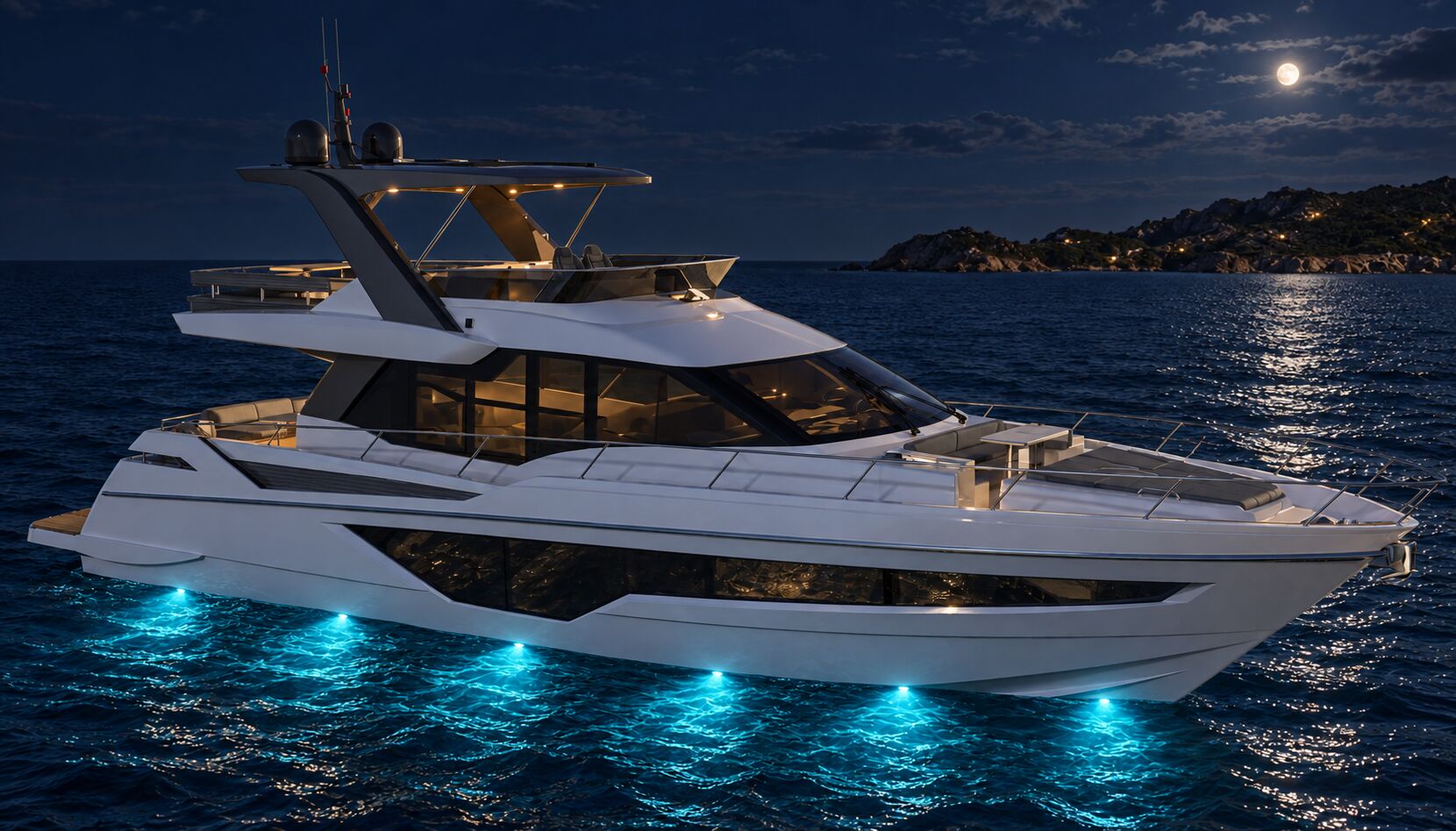

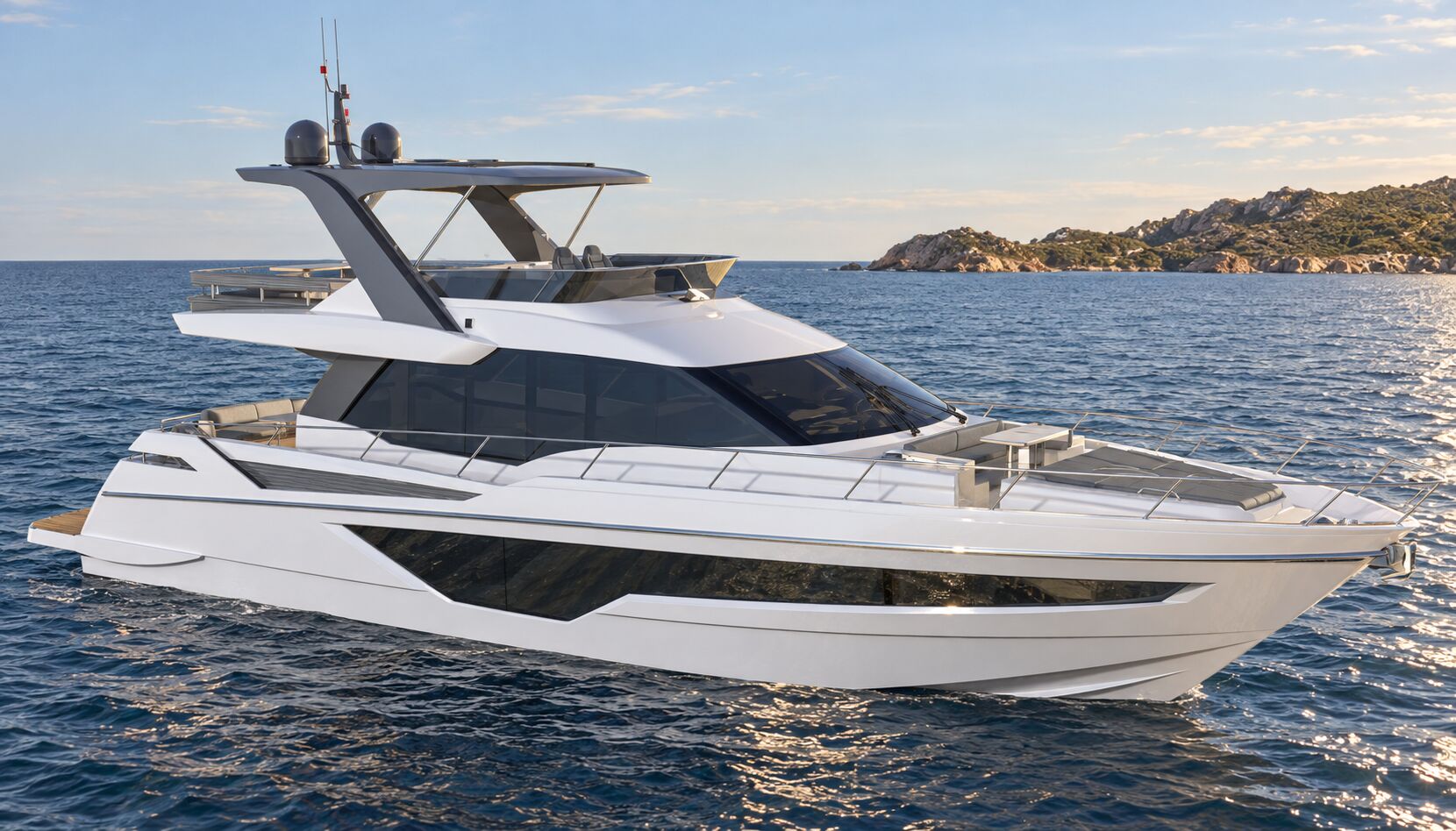

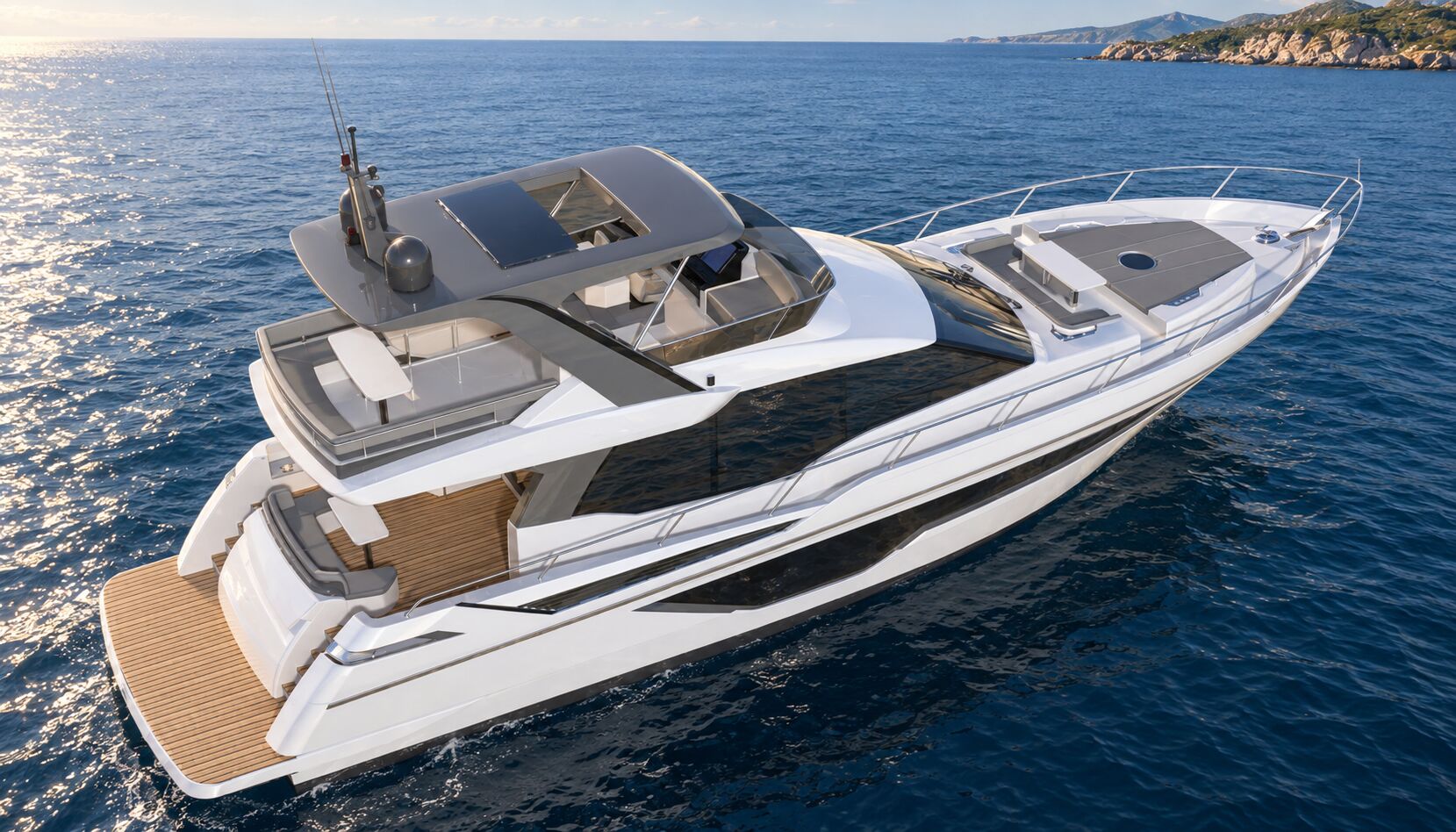

Exterior

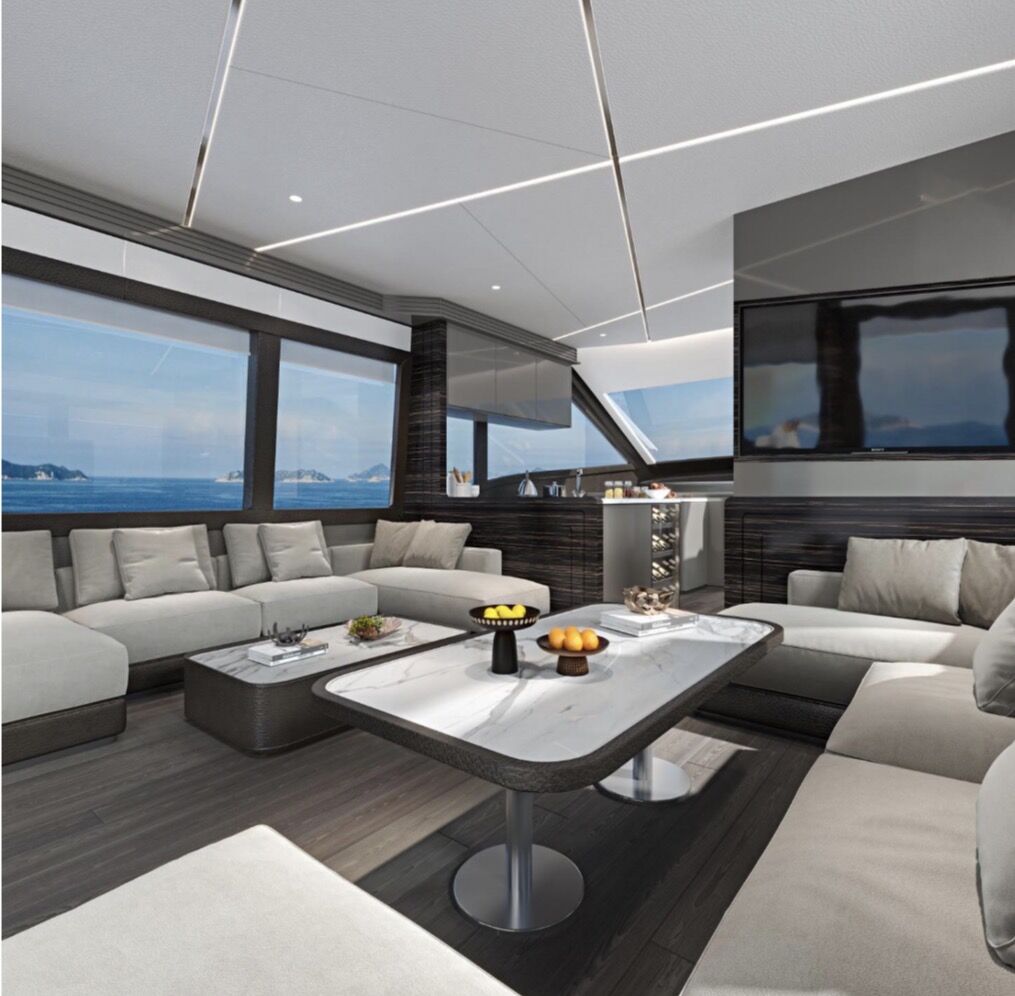

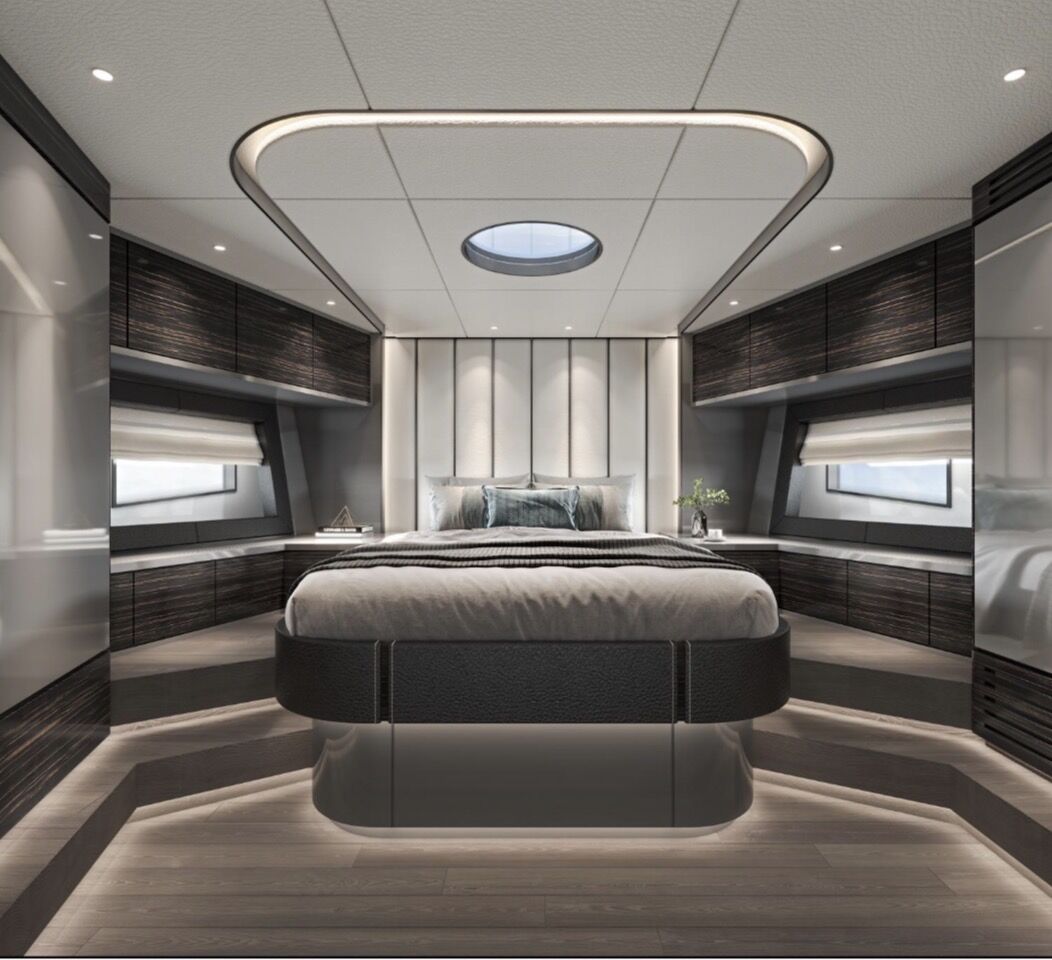

Interior
Dimensions & Performance
- Length overall: 19.60 m
- Beam: 5.00 m
- Height: 7.39 m (8.81 m incl. masthead light)
- Design draft: 1.03 m
- Loaded displacement: 36 t
- Cruising speed: 10–11 knots
- Maximum speed: 14–15 knots
- Certification: CE / ABYC
Capacities
- Fuel: 3,000 L
- Fresh water: 600 L
- Black water: 300 L
- Grey water: 400 L
- Watermaker: Rainman 230 (Australia)
- Water heater: 40 L
Propulsion & Construction
- Twin CAT C7.1-500 diesel engines
- Bow & stern thrusters — Maxpower (France)
- Hydraulic steering — Seastar (USA)
- Nickel-aluminium-bronze propellers
- Bennett trim tabs
- Moulded FRP hull with white DSM gel coat (Holland)
- PVC-core sandwich construction
- 25 mm PVC watertight bulkheads
- Prop Speed anticorrosion coating
Deck & Fittings
- Teak decks: aft deck, swim platform, side decks, foredeck & flybridge
- Teak cockpit and flybridge tables
- Electric anchor winch — Quick (Italy)
- 50 kg plough anchor, 75 m chain
- SS316 cleats, fairleads and safety rails
- Foredeck escape hatch
- Side access at the aft deck
- Twin helm stations — main deck & flybridge
Interior & Comfort
- Matt wood veneers with pattern options
- Linen / microfibre leather wall upholstery
- Custom microfibre leather salon sofa
- Artificial stone bar and head countertops
- Marine air conditioning — cooling & heating in all rooms
- Refrigerator, induction cooker, oven, dishwasher & ice maker
- 40–60 in television
- Fusion sound system (New Zealand)
- Jabsco electric flush toilets
Systems & Navigation
- CAT 15 kW generator
- Victron 3 kW inverter and battery chargers
- Marinco 63 A shore power
- Garmin radar displays: 12 in main helm, 9 in flybridge
- Garmin autopilot & gWind wind instrument
- Intellian satellite antenna
- Garmin VHF radio
- Fireboy automatic engine-room extinguisher
- Golight stern searchlight
Crafted For Your Lifestyle
From coastal adventures to sunset dinners, Baltra promises more than a boat — it delivers a lifestyle defined by freedom, precision, and timeless elegance.
